Detailed Performance Summary

For a clear equipment comparison, this summary reviews how 3040lbs TYPHON STOMP X1300 25HP Kubota D1105 EPA Diesel Mini Skid Steer Loader performs, where it can be used, and which operating details should be checked before selection.

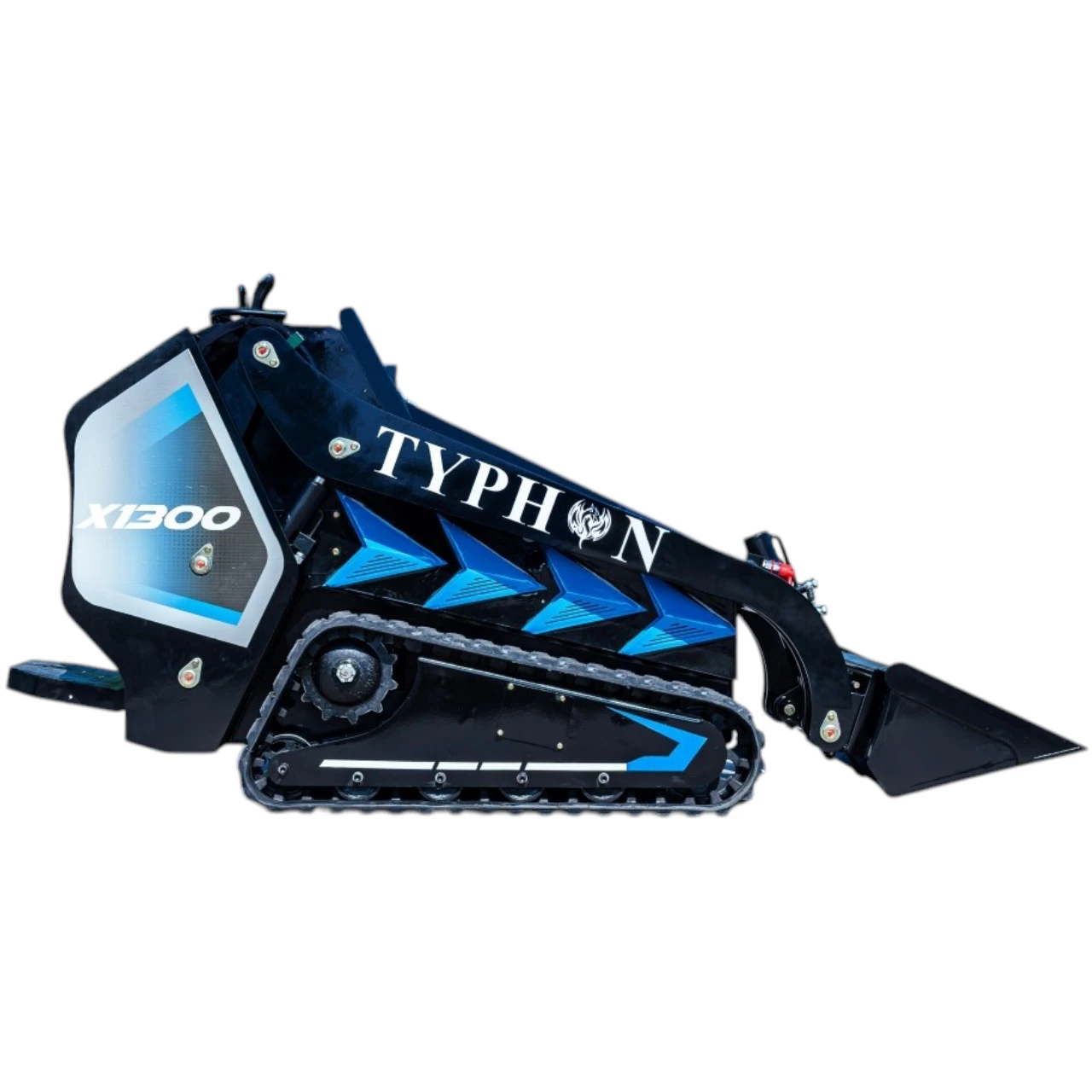

Unleash the compact power of the TYPHON STOMP X1300 Mini Skid Steer Loader, a versatile and reliable solution for small construction projects. Engineered for easy maneuverability in confined spaces, this 3040lbs skid steer loader is designed to support handle various tasks with efficiency. From digging and drilling to bull-dozing and landscaping, the TYPHON STOMP X1300 offers exceptional performance in a compact economical package.

Explore the powerful and efficient TYPHON STOMP X1300 compact skid steer loader with advanced hydraulic systems and high-end Kubota D1105 engine for optimized performance.

Performance Features and Specifications

• Specially engineered for small construction projects, ensuring easy manoeuvrability.
• Ideal for farms, gardens, public spaces, parks, orchards, and more.

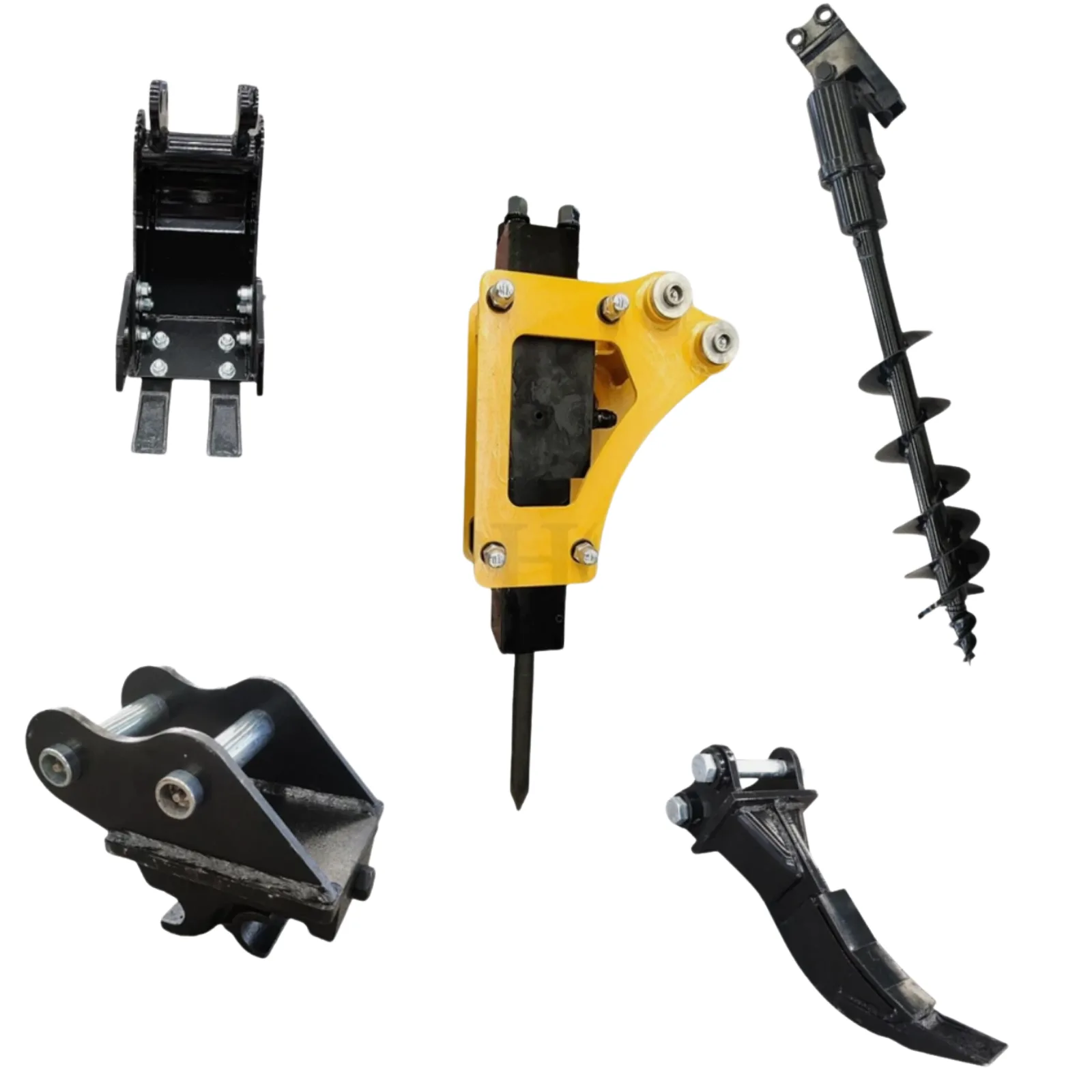

• Perfect for drilling, digging, grabbing, bull-dozing, ditch-cleaning, small excavations, rock-breaking, landscaping, and construction purposes.
• Features an EPA certified Japanese Kubota D1105 (25HP). for smooth functionality.A vertical, water cooled 4-cycle diesel engine, Kubota D1105 packs a power of 25 hp at 3000 RPM and 19 hp at 2200 RPM. It is a 3-cylinder, indirect injection diesel engine with
• The hydraulic system adopts an Italian HANSA closed-loop system. Withstands intensive construction projects without sacrificing performance.
• Features premium components such as IMPRO motor, Taifeng plunger pump, and Lufthansa handle joystick system.
• Operation is carried out via a mixture of pilot control and mechanical control. Pilot Control on the left control handle is used for the overall movement of the machine while the mechanical control handle on the right is for operating the arm.
• The operator's position is equipped with Foam Padding for added comfort. The hood is fitted with Gas Spring Struts so that the machine is better suited to brace for impacts.
• The STOMP X1300 is equipped with Piston Pump, which ensures an efficient hydraulic flow rate throughout the machine. Out of the three pumps, the two in front are used for controlling overall machine movement, while the one at the back is used for controlling actions (such as the arm and auxiliary equipment).
• Meanwhile, two of the three valves are for controlling the left and right side drive motors. The third valve is under the mechanical control lever, which controls the actions (of the arm, hydraulic cylinders, and auxiliary equipment).
• The hydraulic oil radiator is placed separate from the engine compartment, so the hydraulic oil temperature is not affected by the heat generated by the engine.

Configuration Considerations

Check the current configuration, operating capacity, dimensions, included work equipment, attachment compatibility, shipping, and availability with the sales team before final selection.
